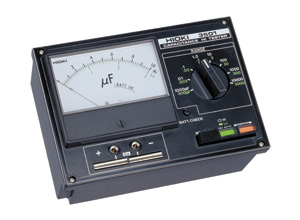

HIOKI 3501电容值测试仪/电容表
单按键操作
16当量程涵盖了从300 pF到10,000 μF的范围
与一般测量功能不同，它还能用DC测量电容—无偏差测量极性电容
两种类型连接治具可以处理所有尺寸的电容
基本参数
| 测量参数 | 满量程 |
| 测量量程 | 300 pF ～ 10,000 μF |
| 测量方式 | DC充电，最大应用电压4V DC |
| 精度 | ±2 % f.s. ±5 pF (300 pF, 1000 pF 量程) ±3 % f.s. (0.003 μF ～ 10,000 μF量程) |
| 电源供应 | 6F22(006P), 2节, 或 AC 转换器(12 V, 300 mA) |
| 体积及重量 | 185宽 x 80高 x 130 厚mm, 680g |
| 附件 | 9617 夹型测试台(1), 9618 夹型测试线(1) |
CAPACITANCE HiTESTER 3501
Covers from 300 pF through 10,000 µF with 16 ranges
- One-touch key operation
- Different from conventional measurement techniques because it measures capacity with DC - to measure polar capacitors without bias
- Two types of connection jigs to handle all sizes of capacitors
Basic specifications
| Measurement items | Capacitance |
| Measurement ranges | 300 pF to 10,000 µF full scale |
| Measurement method | DC charge, applied voltage 4 V DC max. |
| Accuracy | ±2 % f.s. ±5 pF (300 pF, 1000 pF range) ±3 % f.s. (0.003 µF to 10,000 µF range) |
| Power supply | 6F22(006P), 2 pieces, or AC adapter (12 V, 300 mA) |
| Dimensions, mass | 185 mm(7.28 in)W × 80 mm(3.15 in)H × 130 mm(5.12 in)D, 680 g (21.2 oz) |
| Accessories | CLIP TYPE LEAD 9618 (1) |
